Lugar de origem:
China
Marca:
Customization
Certificação:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Número do modelo:
Conjunto de chicote de fios de 4 pinos ECON25

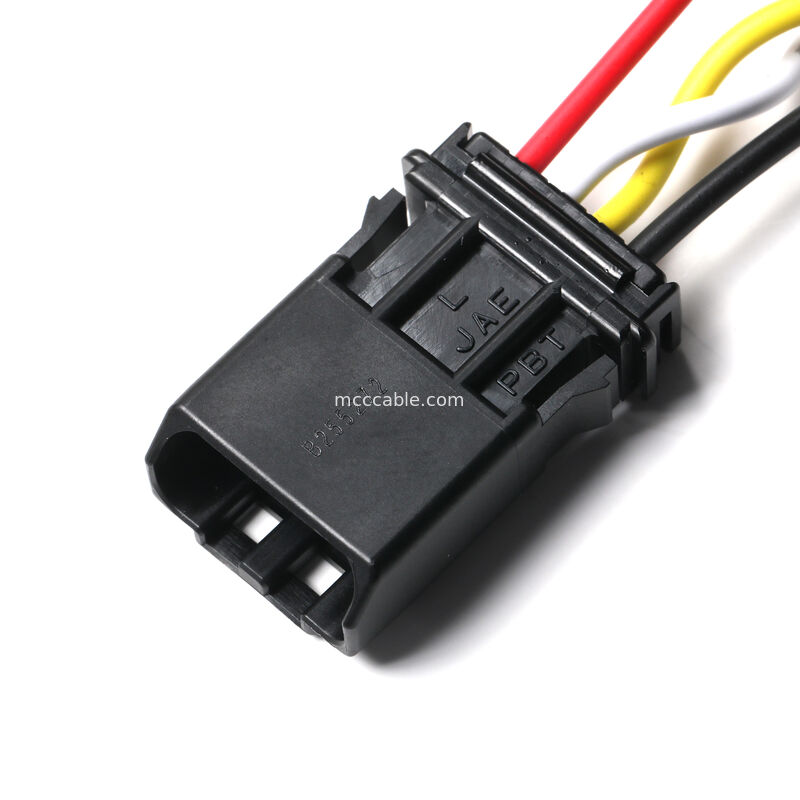

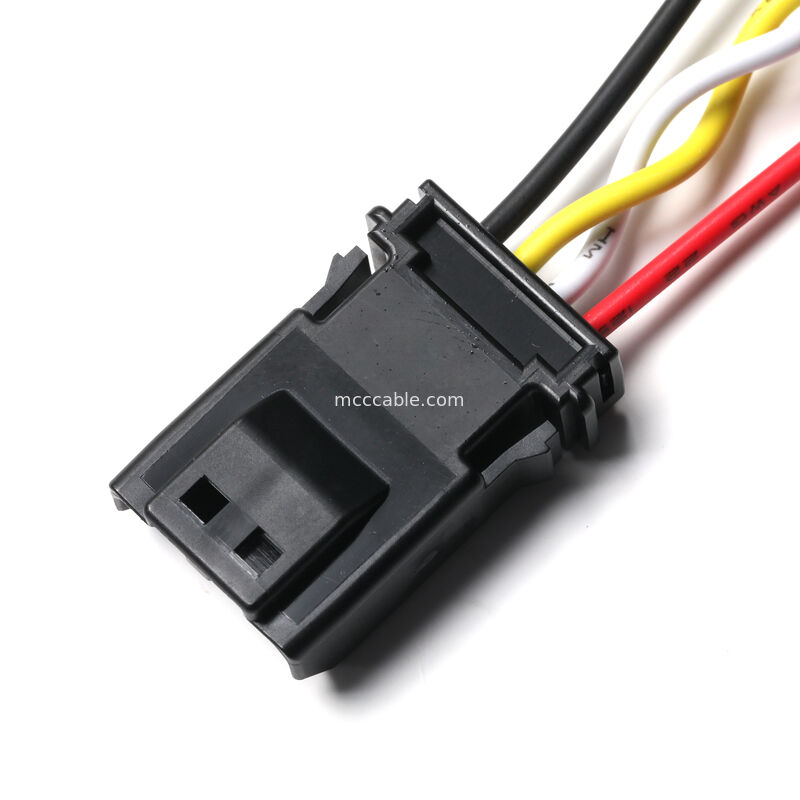

ECON25 4-Pin Wire Harness Assembly, 2.5mm Pitch TXL
22AWG Twisted Pair Cable
ECON25 4-Pin Wire Harness Assembly:
The ECON25 4-pin wire harness assembly is designed with a compact 2.5 mm pitch
connector housing and TXL 22 AWG insulated wires.
This assembly features a twisted-pair wire configuration to improve signal stability and
reduce interference in low-voltage control and signal transmission systems.
The harness is manufactured according to engineering drawings and supplied as a
ready-to-install solution for OEM and custom wiring applications.
ECON25 4-Pin Wire Harness Assembly Key Features:
2.5 mm pitch, 4-pin connector housing

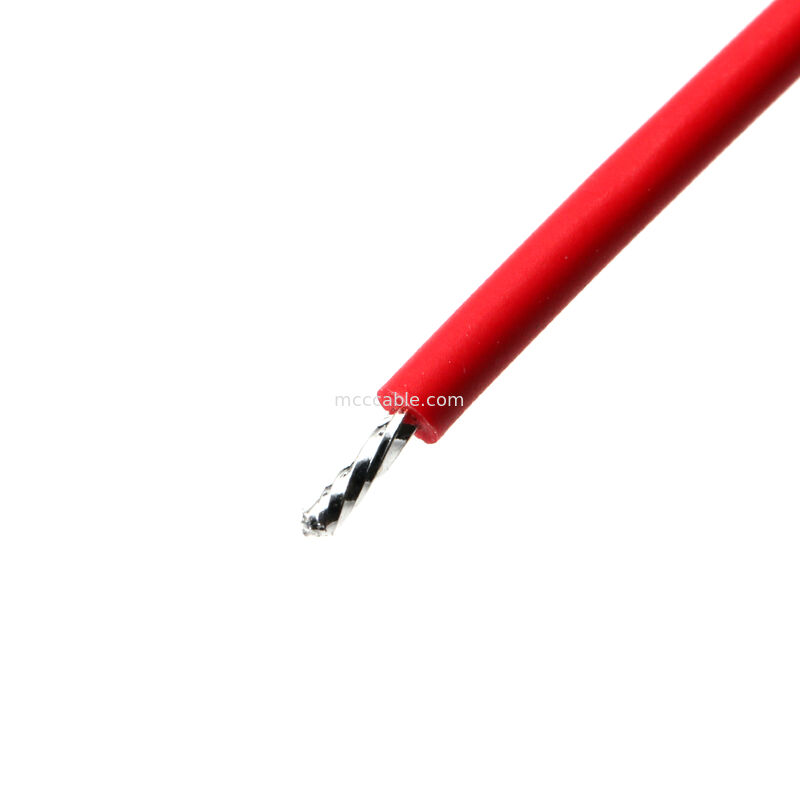

TXL 22 AWG XL-PE insulated wire

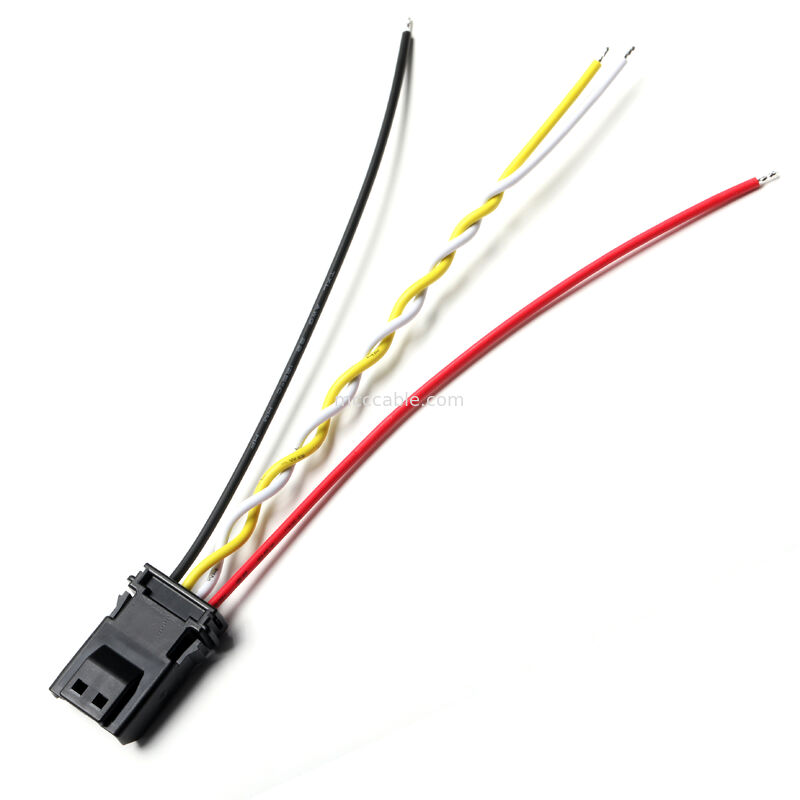

Twisted-pair configuration for enhanced signal integrity
Crimped terminal connection for reliable electrical contact
Compact structure suitable for space-limited installations
100% electrical continuity testing before shipment
ECON25 4-Pin Wire Harness Assembly Typical Applications:
Industrial control systems
Automotive electronic modules
Low-voltage signal transmission
Sensor and actuator connections
Custom electronic equipment wiring
ECON25 4-Pin Wire Harness Assembly Technical Specifications:
| Item | Specification |
|---|---|
| Connector Pitch | 2.5 mm |
| Pin Count | 4 Pins |
| Wire Type | TXL, XL-PE insulation |
| Wire Gauge | 22 AWG |

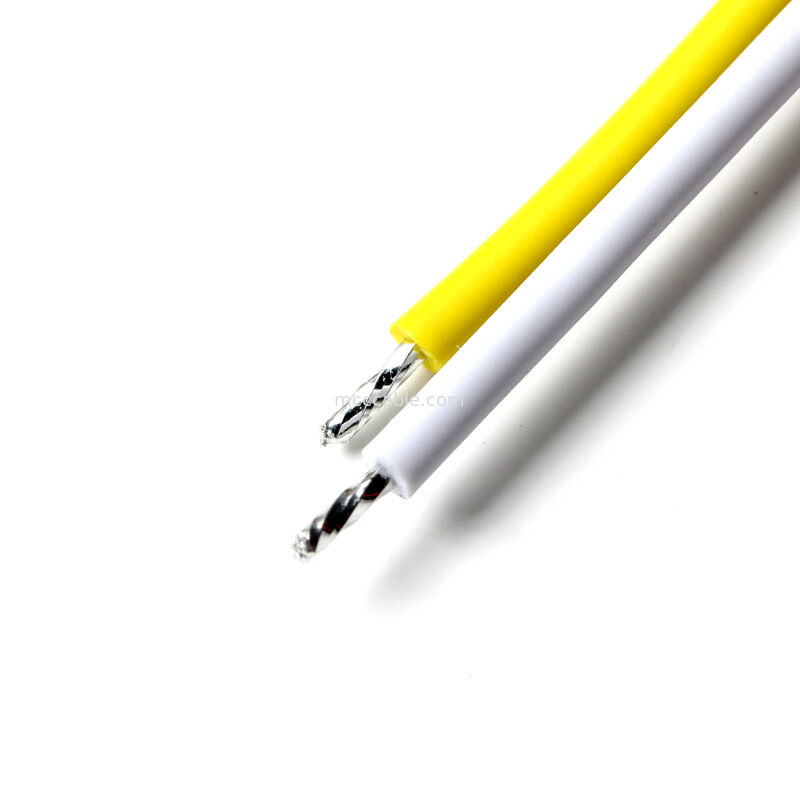

| Wire Configuration | Twisted Pair (Yellow & White) |
| Rated Voltage | ≤ 100 V |
| Operating Temperature | Up to 105 °C |
| Compliance | RoHS |
ECON25 4-Pin Wire Harness Assembly Customization Options:
Cable length
Wire color combination
Wire gauge (within compatible range)
Pin assignment / wiring configuration
Terminal type or tinning length
Packaging and labeling options
Q1. Is it a factory?
A: Yes, we are a factory with more than 16 years of design and manufacturing experience.
Q2. Is there any certification?
A: Yes, we have ISO9001, ISO14001, TS16949, ISO13485, and UL certifications.
Q3. What is your specialty?
A: We can design products according to the application requirements.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM and ODM orders. For OEM orders, the MOQ is 100 pcs. For ODM
orders, the MOQ is 1000 pcs. A mold fee will be charged depending on the design.
Q5. How long does it take to complete an order?
A:For small orders and products in stock, preparation and delivery take less than 3 days.
Shipping time depends on the chosen method—fastest 7 days, longest 1 month.For large
orders, material preparation takes 5–21 working days depending on quantity, testing 1–3
working days, and packing 1 day. The fastest lead time is 7 days, and the longest is 25 days,
excluding shipping.
Q6. What additional services can long-term clients get?
A:New products will be offered together with orders, allowing you to test their market potential
and sell them in your district.Additional fee discounts and lower prices for smaller-quantity
purchases.Support with promotional images, including adding your logo.
Q7. How long is the warranty, and how do you protect customers in case of defects?
A: All cables come with a 12–36 month warranty. For large orders, we provide 0.3%–0.5%
extra backup units. For example, ordering 1000 pcs will include 1003 pcs.If you receive more
than 5 faulty pcs and the defect rate is below 0.1%, please contact our sales team with photos.
We will replace the goods in your next order or issue a refund.
Q8. Do you accept free sample orders?
A: Yes, sample orders are supported. Some samples can be provided free of charge (shipping
cost not included).
