Lugar de origem:
China
Marca:
Customization
Certificação:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
3 Pin Molex 1.50mm Wire Harness

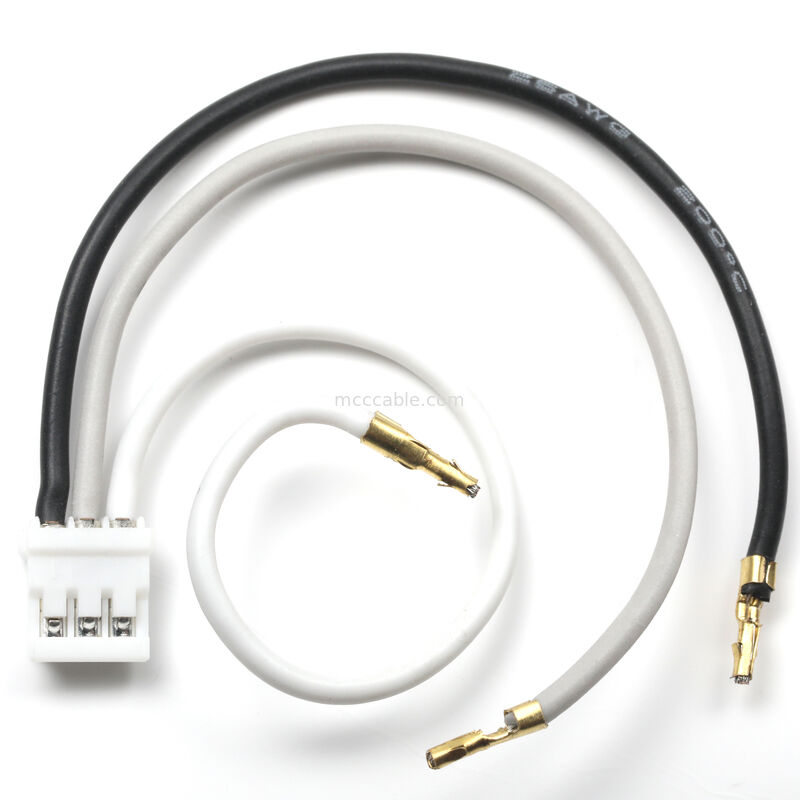

3 Pin Molex 1.50mm Wire Harness with Soft Silicone Cable
Assembly
3 Pin Molex 1.50mm Wire Harness:
This 3 Pin Molex 1.50mm wire harness assembly is manufactured using soft silicone wire
(26 AWG), designed for applications requiring high flexibility, stable electrical performance,
and compact connector solutions.

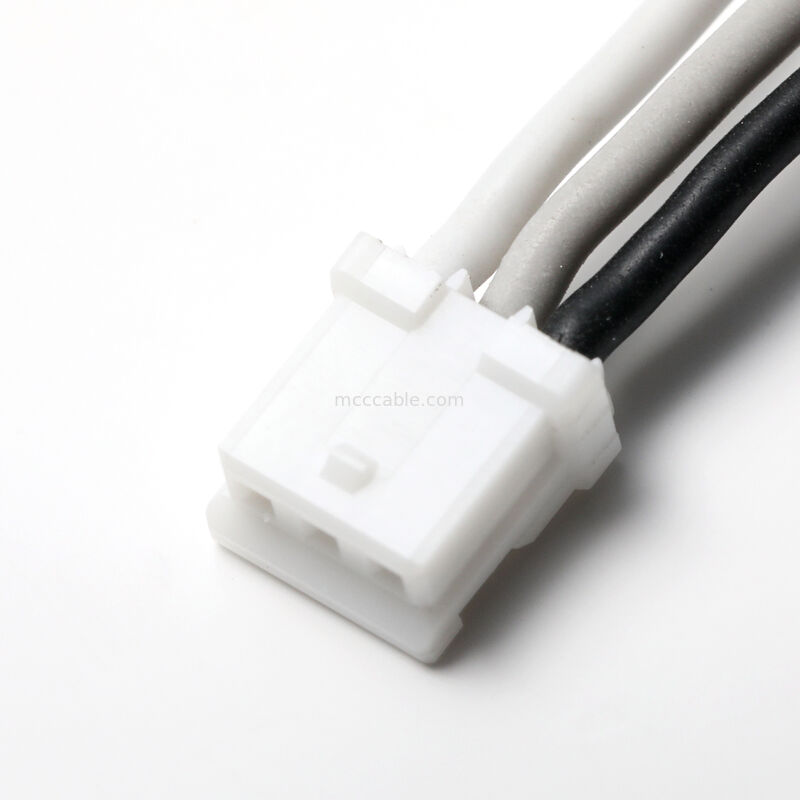

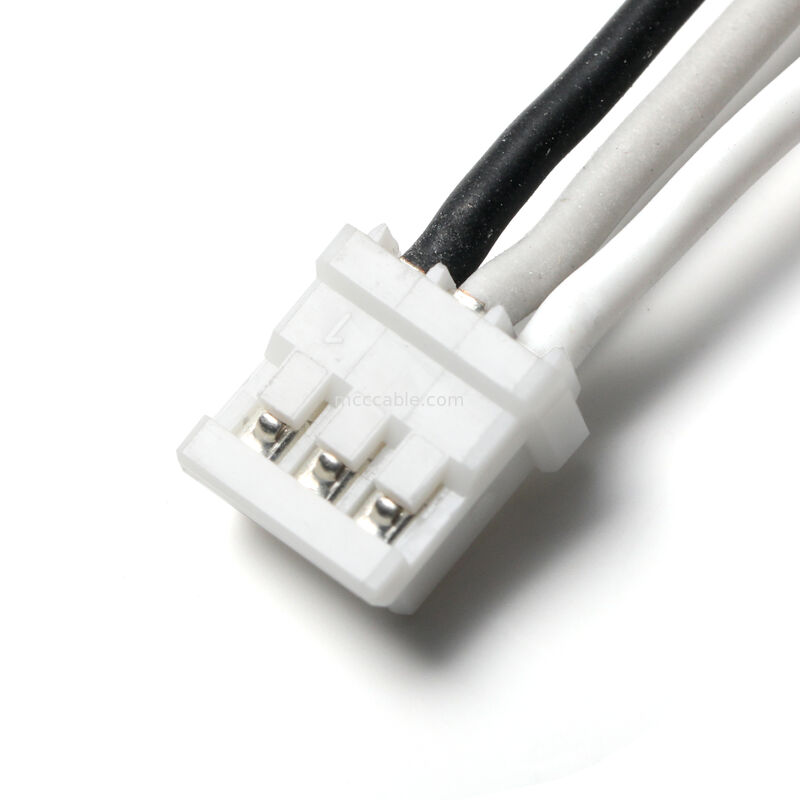

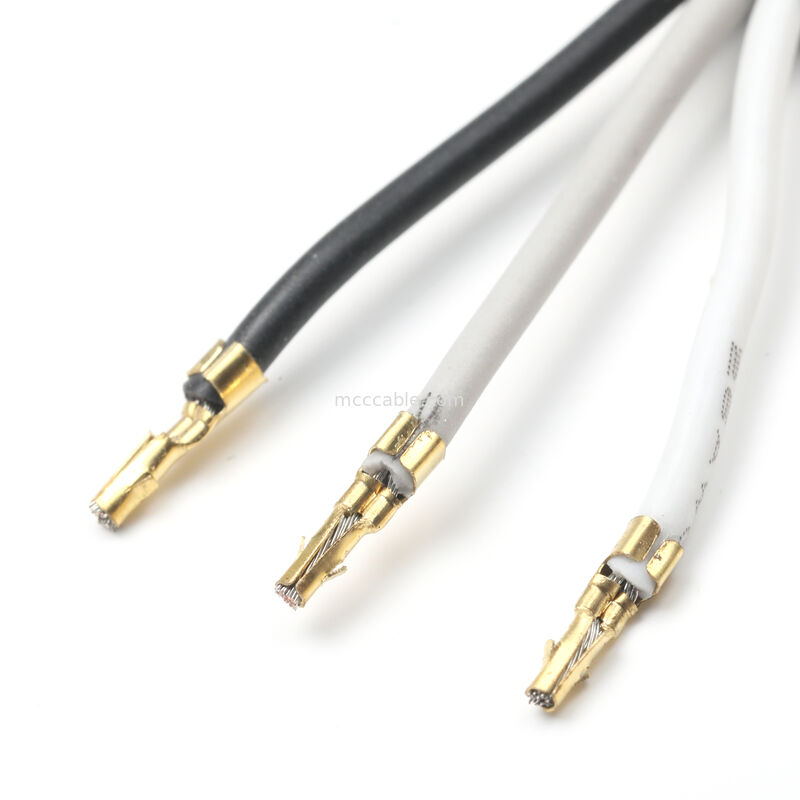

The assembly features a Molex 87439-0300 3-position receptacle housing with 87421-0000
crimp terminals, ensuring reliable contact performance and secure mating.
All assemblies are produced in compliance with IPC/WHMA-A-620 Class 2 workmanship
standards and are 100% electrically tested before shipment.
OEM and ODM customization is available to meet specific application requirements.
Key features of the 3 Pin Molex 1.50mm Wire Harness:
Molex 1.50mm pitch, 3-position connector system
Soft silicone wire, excellent flexibility and heat resistance
26 AWG conductor, OD 1.2 mm
Crimped terminals, stable and reliable connection
Compact design, suitable for space-limited applications
100% open / short / intermittent test
RoHS 2.0 compliant
OEM / ODM supported
Typical Applications of the 3 Pin Molex 1.50mm Wire Harness:
Industrial control systems
Medical and healthcare devices
Precision electronic equipment
Sensors and small modules
Custom OEM electronic assemblie
Technical Specifications of the 3 Pin Molex 1.50mm Wire Harness:
| Item | Specification |
|---|---|
| Product Type | Wire Harness Assembly |
| Connector Housing | Molex 87439-0300 |
| Connector Type | Receptacle Housing |
| Pitch | 1.50 mm |
| Number of Positions | 3 Pin |
| Terminal | Molex 87421-0000 |
| Wire Type | Soft Silicone Wire |
| Wire Gauge | 26 AWG |
| Wire OD | 1.2 mm |
| Wire Length | 65 ± 3 mm |
| Insulation Material | Silicone |
| Color | Black / Gray / White |
| Conductor Resistance | ≤ 2 Ohms |
| Insulation Resistance | ≥ 10 MΩ @ 300V DC |
| Electrical Test | 100% Open / Short / Intermittent |
| Compliance | RoHS 2.0 |
| Manufacturing Standard | IPC/WHMA-A-620 Class 2 |
| Customization | Supported |
Customization Capability of the 3 Pin Molex 1.50mm Wire Harness:
We provide application-based custom wire harness solutions, including:
Custom wire length and color
Alternative wire gauge or insulation material
Connector or terminal replacement
Pin-out customization
OEM & ODM private labeling
Our engineering team can support drawing review and rapid prototyping.
Quality Control of the 3 Pin Molex 1.50mm Wire Harness:
100% electrical performance testing
Crimp force and visual inspection
Dimensional inspection per drawing
Stable batch traceability
Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
Q1. Are you a manufacturer or a trading company?
A: We are a professional manufacturer with over 16 years of experience in cable design
and manufacturing.
Q2. What certifications do you have?
A: Our factory is certified with ISO9001, ISO14001, TS16949, ISO13485, and UL, ensuring
stable quality and compliance with international standards.
Q3. What are your core strengths?
A: We specialize in application-based design, providing customized cable and wiring
solutions tailored to specific customer requirements.
Q4. Do you support OEM and ODM services?
A: Yes, both OEM and ODM services are available.
OEM orders: Minimum order quantity (MOQ) is 100 pcs
ODM orders: MOQ is 1000 pcs
Mold fees will be charged based on the actual design and development requirements.
Q5. What is your production lead time?
A:Small orders or items in stock: Preparation and dispatch within 3 days. Shipping time
depends on the selected method, ranging from 7 days to 1 month.
Large orders: Production lead time is 5–21 working days depending on quantity, followed
by 1–3 days for testing and 1 day for packaging. Total lead time is typically 7–25 days,
excluding shipping.
Q6. What additional benefits do long-term partners receive?
A: Long-term customers enjoy:
Access to new product releases, allowing early market testing and regional resale
opportunities
Additional discounts and more competitive pricing, even for smaller order quantities
Marketing support, including promotional images and logo customization
Q7. What is the warranty policy, and how are quality issues handled?
A: All our cable products come with a 12–36 month warranty.
For large-volume orders, we provide 0.3%–0.5% extra units as backup. For example,
an order of 1000 pcs may include up to 1003 pcs.
If you receive more than 5 defective units and the defect rate is below 0.1%, please
contact our sales team with photos. We will resolve the issue through replacement or
refund.
Q8. Do you offer free samples?
A: Yes, sample orders are supported. Some samples can be provided free of charge,
excluding shipping costs.
